MyScript iink SDK Web REST Shape recognition example
Considering this request body.
rest-shape-example.json
{
"scaleX": 0.265,
"scaleY": 0.265,
"contentType": "Shape",
"strokes": [
{
"t": [
1730890320380,
1730890320420,
1730890320437,
1730890320453,
1730890320470,
1730890320486,
1730890320503,
1730890320520,
1730890320537,
1730890320554,
1730890320570,
1730890320586,
1730890320603,
1730890320620,
1730890320637,
1730890320654,
1730890320670,
1730890320687,
1730890320704,
1730890320720,
1730890320737,
1730890320753,
1730890320770,
1730890320787,
1730890320803,
1730890320820,
1730890320837,
1730890320854,
1730890320871,
1730890320888,
1730890320904,
1730890320920,
1730890320937,
1730890320953,
1730890320971,
1730890320987,
1730890321004,
1730890321020,
1730890321037,
1730890321046
],
"x": [
904,
899,
887,
861,
821,
770,
717,
656,
591,
524,
465,
399,
370,
348,
345,
356,
373,
399,
430,
472,
524,
580,
642,
742,
816,
891,
956,
1007,
1040,
1050,
1045,
1025,
989,
946,
872,
812,
732,
640,
556,
521
],
"y": [
96,
92,
85,
76,
64,
54,
49,
47,
46,
48,
57,
83,
105,
133,
152,
168,
186,
211,
240,
269,
294,
313,
321,
318,
309,
300,
288,
272,
253,
233,
209,
178,
147,
119,
91,
79,
68,
62,
58,
58
]
}
]
}

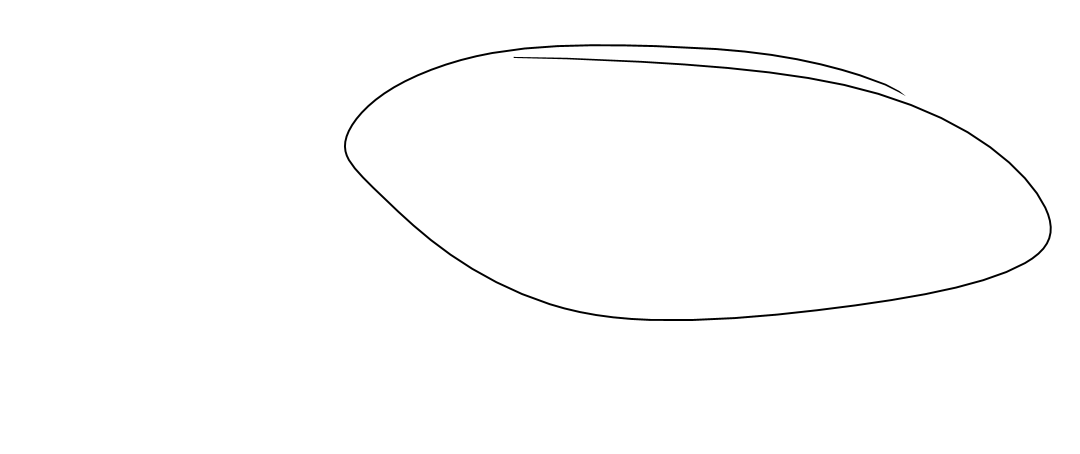

The strokes of this request correspond to that writing:
Following is the result for application/vnd.myscript.jiix output.
{
"version": "3",
"id": "MainBlock",
"type": "Shape",
"bounding-box": {
"x": 90.4249954,
"y": 11.1899996,
"width": 188.825012,
"height": 74.8749924
},
"elements": [ {
"bounding-box": {
"x": 90.4249954,
"y": 11.1899996,
"width": 188.825012,
"height": 74.8749924
},
"shape": {
"kind": "ellipse",
"primitives": [ {
"type": "arc",
"cx": 182.78064,
"cy": 49.0672455,
"rx": 90.2107544,
"ry": 34.850235,
"phi": -1.48002755e-7,
"startAngle": -0.942544341,
"sweepAngle": 6.28318548
} ]
},
"candidates": [ {
"kind": "ellipse",
"primitives": [ {
"type": "arc",
"cx": 182.78064,
"cy": 49.0672455,
"rx": 90.2107544,
"ry": 34.850235,
"phi": -1.48002755e-7,
"startAngle": -0.942544341,
"sweepAngle": 6.28318548
} ]
} ],
"items": [ {
"timestamp": "2024-11-06 10:52:00.380000",
"X": [ 239.559982, 238.234985, 235.054993, 228.164993, 217.564987, 204.049988, 190.00499, 173.839996,
156.61499, 138.859985, 123.224991, 105.734993, 98.0499954, 92.2199936, 91.4249954, 94.3399963,
98.8449936, 105.734993, 113.949997, 125.079994, 138.859985, 153.699997, 170.12999, 196.62999,
216.23999, 236.11499, 253.339981, 266.85498, 275.599976, 278.25, 276.924988, 271.625,
262.084991, 250.689987, 231.079987, 215.179993, 193.979996, 169.599991, 147.339996, 138.064987 ],
"Y": [ 25.4399986, 24.3799992, 22.5249996, 20.1399994, 16.9599991, 14.3099995, 12.9849997, 12.454999,
12.1899996, 12.7199993, 15.1049995, 21.9949989, 27.8249989, 35.2449989, 40.2799988, 44.5199966,
49.2899971, 55.9149971, 63.5999985, 71.284996, 77.909996, 82.9449921, 85.0649948, 84.2699966,
81.8849945, 79.4999924, 76.3199921, 72.0799942, 67.0449982, 61.7449951, 55.3849983, 47.1699982,
38.954998, 31.5349979, 24.1149979, 20.9349995, 18.0199986, 16.4299984, 15.3699989, 15.3699989 ],
"F": [ 0, 0, 0, 0, 0, 0, 0, 0,
0, 0, 0, 0, 0, 0, 0, 0,
0, 0, 0, 0, 0, 0, 0, 0,
0, 0, 0, 0, 0, 0, 0, 0,
0, 0, 0, 0, 0, 0, 0, 0 ],
"T": [ 0, 40, 57, 73, 90, 106, 123, 140,
157, 174, 190, 206, 223, 240, 257, 274,
290, 307, 324, 340, 357, 373, 390, 407,
423, 440, 457, 474, 491, 508, 524, 540,
557, 573, 591, 607, 624, 640, 657, 666 ],
"type": "stroke",
"id": "0000000001004f00ff00"
} ]
} ]
}
